Multi Lights Color Comparison Box JIS Z8110 Colour Contrast Cabinet
Introduction Of Color Comparison Light Box :
Standard light source color matching light boxes are widely used in textiles, printing and dyeing, printing, plastics, pigments, paints, inks, photography and other color fields to accurately check the color deviation of goods.
Because different light sources have different radiant energy, they will show different colors when irradiated on the object. In the color management of industrial production, although quality inspectors have carefully compared the colors of goods, because the environmental light source is not standard or inconsistent with the light source used by the merchants, the colors seen under different light are different, and the color difference of the goods is difficult determination. When inspecting the goods, merchants will complain or even return the goods because the color difference exceeds the standard range, which seriously affects the company's goodwill.
To effectively solve the above problems, the most useful method is to verify the color of the goods under the same light source and controllable conditions. For example, artificial daylight D65 is often used in international general standards as the standard light source for evaluating the color of goods. The color comparison box plays an more imprtant role.
Especially during night shifts, it is especially important to use standard light sources to verify the color deviation of goods.
In addition to the D65 light source, the light box also provides TL84, CWF, UV, F/A and other light sources, which have the function of testing metamerism.
Meet standards :
GB/T7922,JIS Z8110/8724,CIE 30
Specifications of color match box:

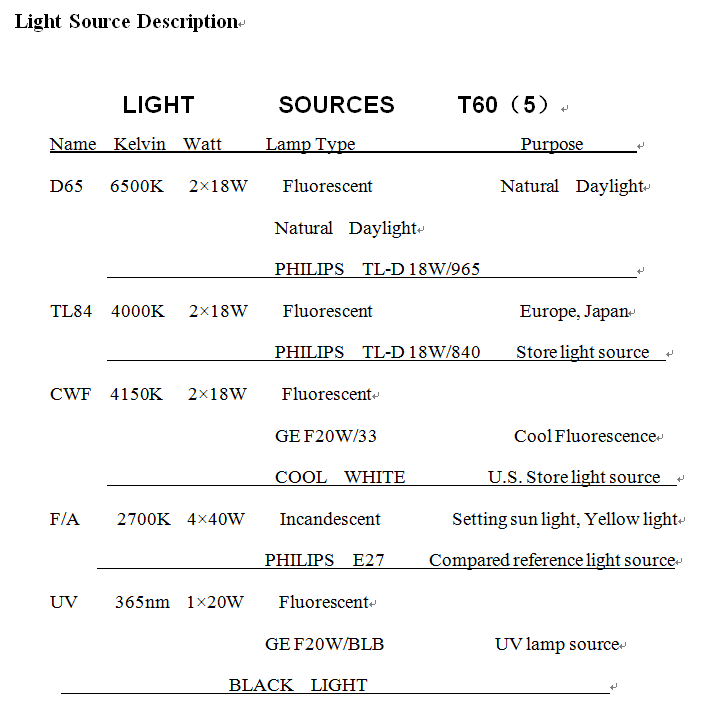

1. Light Sources:
(1). D65 --- International-standard Artificial Daylight
Color temperature:6500K Power:20W
(2).F/A --- Comparison referential light source, Applicable to family / hotel
Color temperature:2700K Power:40W
(3). CWF (Cool White Fluorescent)
Color temperature:4150K Power:20W
(4). TL84 --- Applicable to stores in Europe, Japan and China
Color temperature:4000K Power:18W
(5). UV ---- Ultraviolet light source
Wavelength:365nm Power:20W
(6)SOURCE : D65*2 ; CWF*2 ; TL84*2 ; UV*1 ; F/A*4
2. Switch: touch switch
3. Integrated timer: Record and display running Time of each light source lamp.
4. Dimensions: 71×40.5×57cm
5. Weight: 30kg
6. Power: 1PH,AC 220V,50/60Hz

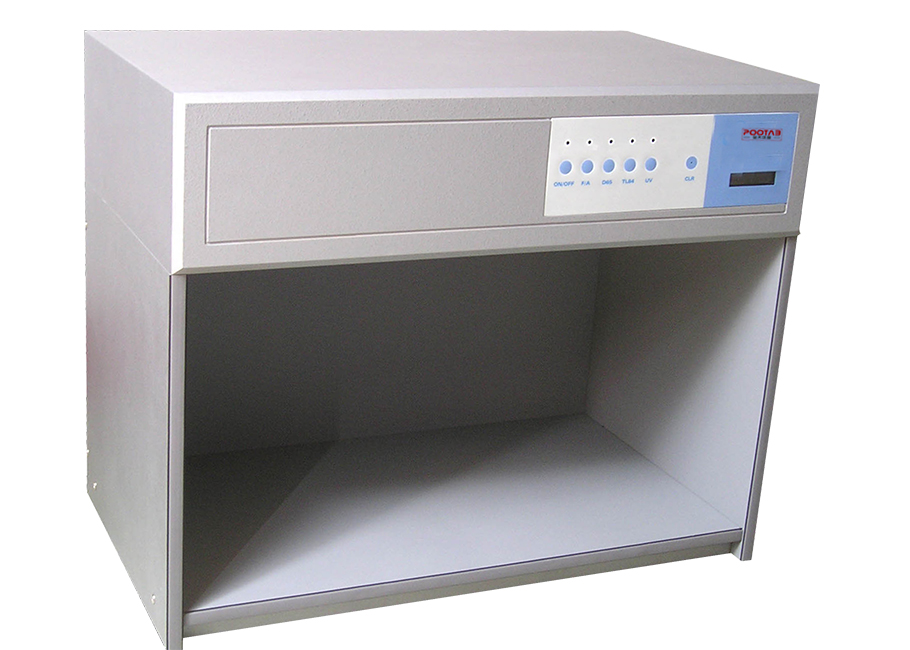

Color Comparison Light Box Photo :
Standard Configuration: D65*2, TL84*2, F*4, UV*1, CWF*2
