Small High Temperature Environmental Test Chamber Vacuum Oven

Name: Small High Temperature Environmental Test Chamber Vacuum Oven
Brand: POOTAB
Price: 1 USD

Small High Temperature Environmental Test Chamber Vacuum Oven Manufactures

Brand Name : POOTAB

Model Number : PT-2012

Certification : ISO,CE,SGS

Place of Origin : Dongguan,Guangdong,China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 350 Sets Per Month

Delivery Time : 10 working days after deposit confirmation

Packaging Details : Plywood case or as customers instructions

Item Name : Small Vacuum Oven

Inner Material : 304 SS(1Cr~18Ni9Ti)

Heating Method : Electric Heating

Max Vacuum Degree : 0.098Mpa

Temperature Range : RT+10~250 Celsius

After-sales Service : Online support, Video technical support

Contact Now

Small High Temperature Environmental Test Chamber Vacuum Oven

Equipment Introduction :

The laboratory vacuum drying oven is specially designed for drying of material which is thermo-sensitive or decompounded and oxidative easily. The laboratory drying oven can be filled with inert gas to dry some materials with complicated components. The laboratory drying oven has been widely used in pharmaceutics, electrical and chemical industry.

Technical Parameters :

Model	Temperature control range	Input power	Studio dimension W×D×H(mm)	Boundary dimension W×D×H(mm)	Loading bracket (Standard configuration)
PT-2012A	RT+10~250℃	450W	300×300×275	615×470×470	Inner heating, one shelf could put in or drag out freely.

PT-2012B	RT+10~250℃	1200W	415×370×345	830×640×540	External heating, three halftones could put in or drag out freely.

PT-2012C	RT+10~250℃	1400W	450×450×450	615×660×1440	Inner heating, two shelf could put in or drag out freely.
PT-2012D	RT+10~250℃	2200W	560×600×640	720×805×1680	Inner heating, three shelf could put in or drag out freely.

Vacuum Oven Features :

1. Effective, gentle drying without damaging the material being dried
2. Vacuum drying also minimizes the risk of scaling and the formation of oxidation residues.
3. Coordinated, modular system with vacuum pump and vacuum module
4. Adopt jacketed vacuum glass door .On one hand, it keeps the temp in room; on
the other hand you can see the dried instruments clearly.
5. The vacuum tube around makes room temperature more uniform, avoiding organic connecting
with fires burring. Set temp and control are all intelligent digital display, high accuracy.
6. Temperature range from ambient +10 °C to 250 °C

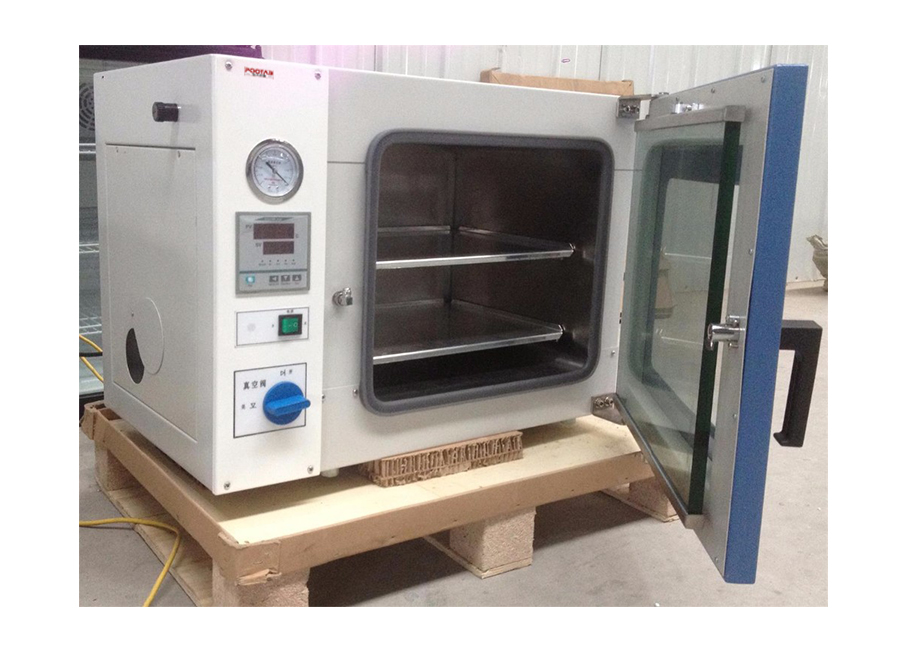

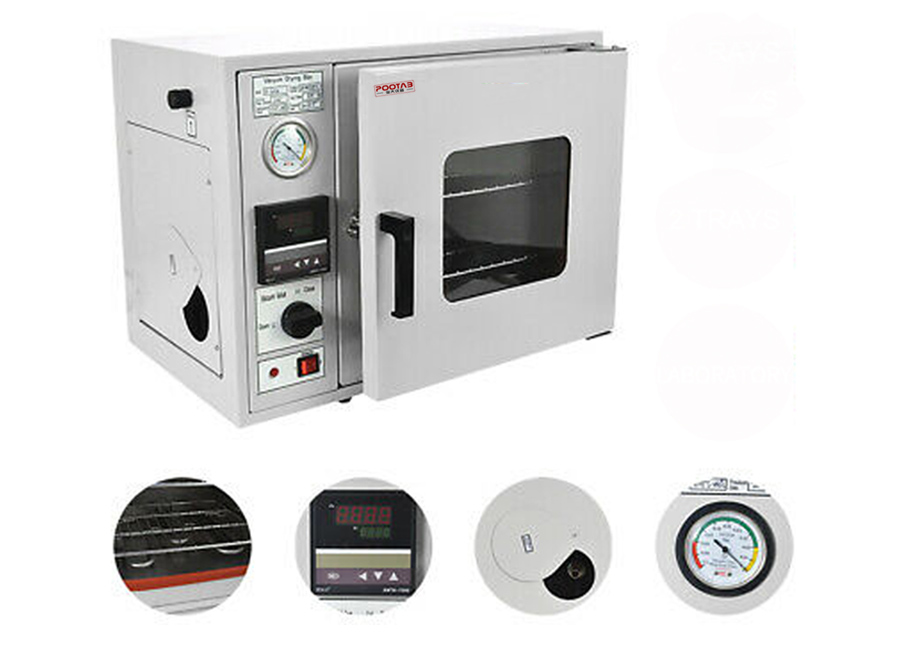

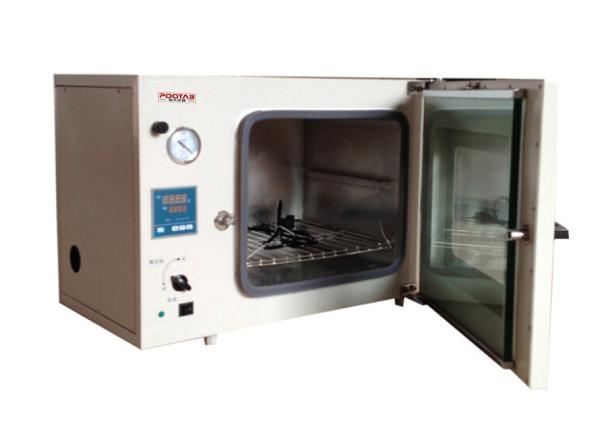

Small Vacuum Oven Refer Picture :
