2T Tension Compression Testing Machine With Jig
Use: This double column tension testing machine is suitable for metal materials, non-metallic materials, wires and cables, rubber plastics, paper products, adhesive tapes, luggage and handbags, textile fibers, ceramics, packaging, leather and other industries. Choose a variety of different clamps/grips/jigs/fixtures to do tensile, compressive, holding tension, holding pressure, bending resistance, tearing, peeling, adhesion, puncture, bursting, shearing, bending resistance and other tests.
Main Parameters:
| Model | PT-1160 | PT-1160B |
| Force Sensor | 2,5,10,20,50,100,200,500,1000,2000kg, one choice |
| Display | force and extension display |
| Force Accuracy | ±0.5% |
| Force Resolution | 1/500,000 |
| Effective Measure Range | 1~100%F.S |
| Deformation Indication Accuracy | ±0.5% |
| Test Speed | 0.5～500mm/min |
| Test Stroke | Max 1000mm,exclude grip |
| Effective Test Space | Left right 400mm |
| Force Unit | kgf,gf ,N,kN,Ibf |
| Stress Unit | MPa,kPa,kgf/cm2,Ibf/in2 |
| Deformation Unit | mm,cm,in |
| Stop Mode | Upper and lower limit safety setting, emergency stop button, program force and elongation setting, test piece damage sensing |
| Snap Method | Manually take points during the test and pre-set take points (20 points) function |
| Computer Extension | Without (only digital display) | With (connected to computer) |
| Standard Configuration | 1 micro printer, 1 power cable, 1 operation manual, 1 product qualifed certificate, 1 warranty card | 1 micro printer, 1 operating software, 1 network cable, 1 power cable, 1 operating manual, 1 product qualifed certificate, 1 warranty card |
| Machine Size | About 76×46×160cm(W×D×H) |
| Machine Weight | About 120kg |
| Motor | Servo Motor |
| Power Supply | AC 220V,50/60Hz |

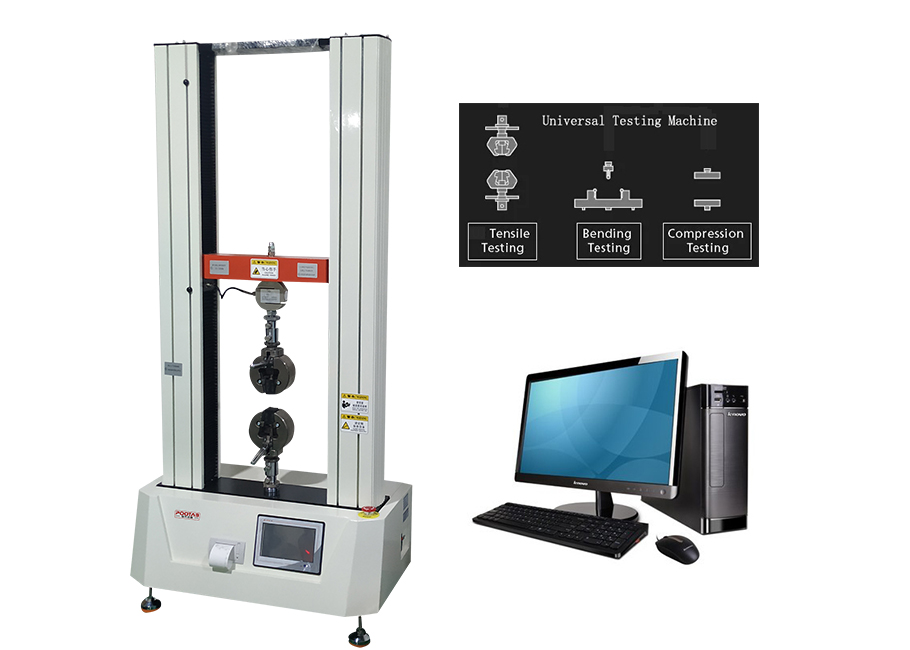

Photos Of Tension Testing Machine :

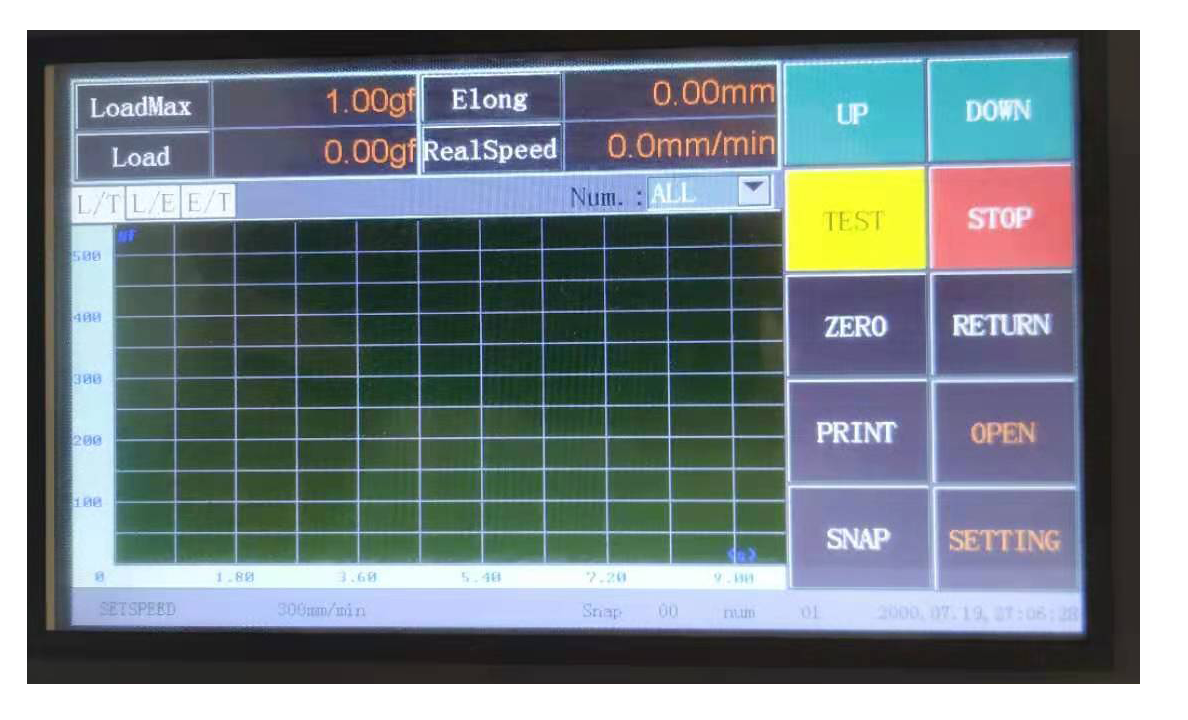

Tension Machine Digital Display Controller :

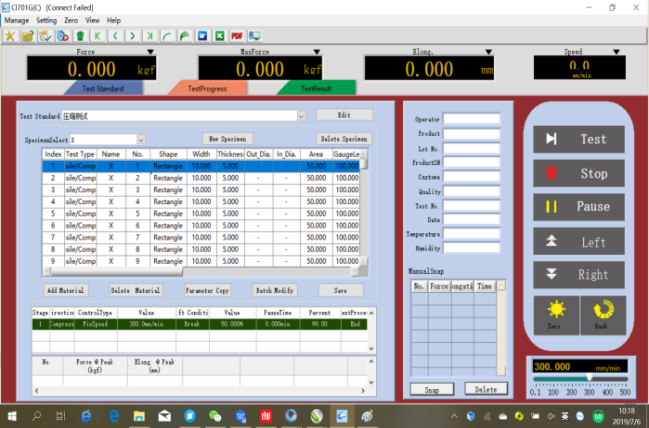

Professional Software :
