1000N High Temperature Tensile Testing Equipment With Oven / AC Servo Motor

Brand Name : PERFECT & POOTAB

Model Number : PT-1175HXX

Certification : ISO, CE, SGS, etc

Place of Origin : Guangdong , China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 150 Sets / Month

Delivery Time : 15 Working Days After Deposit

Packaging Details : Standard wooden Case

Item : Tensile testing equipment, single column, for high temperature testing

Display : Touch screen controller display Or computer control display

Force Capacity : Within 5000N

Temperature Range : oom temperature ~ 200℃ (with visual window, lighting

Test Speed : 0.5 ~ 500mm/min or as request

Motor : AC servo motor, or Stepper Motor

Contact Now

1000N Tensile Testing Machine With Oven , High Temperature Tensile Testing Equipment

Machine Application: PT-1175HXX Tensile Testing Machine adopts the latest design concepts and manufacturing technologies, the integration of precision oven and tensile testing machine as a new model, is designed to simulate the physical properties of various materials testing improved models in different environmental conditions, if install of high-low temperature test chamber on this machine, can be test the materials physical characteristics of tensile, compression, shearing, bending, flex at different temperature. When using the normal temperature test, oven can be removed, to increase the use space.

Besides the high temperature type tensile machine, we also make high & low temperature type tensile strength machine, temperature humidity type tensile testing machine, and for big force testing, structure use the double column type.

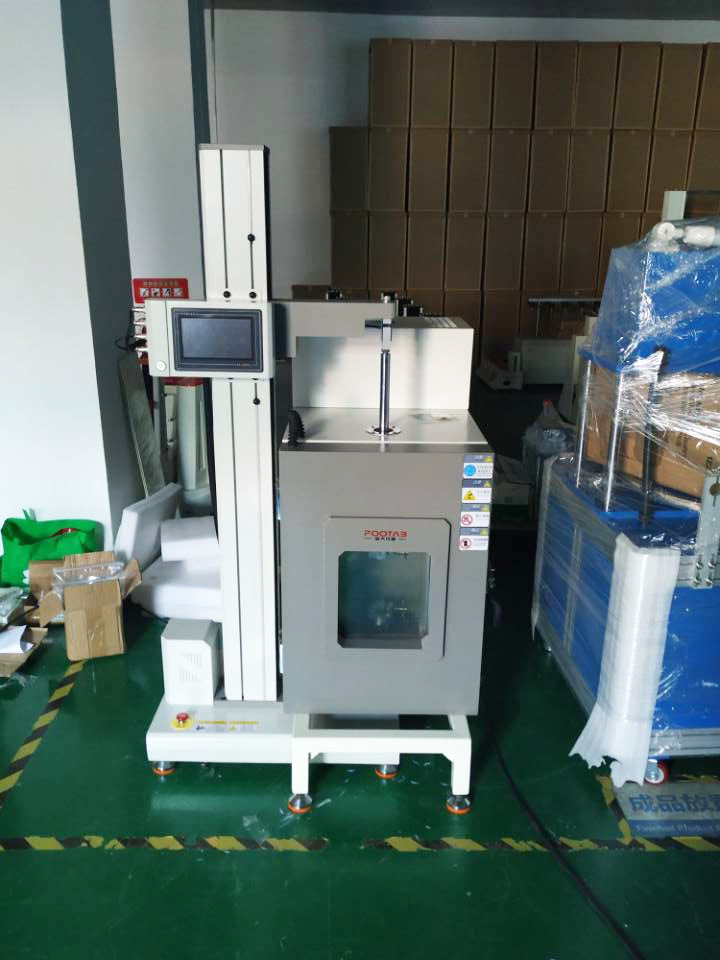

1000N High Temperature Tensile Testing Equipment With Oven / AC Servo Motor

Tensile Machine Specifications:

Model PT-1175HXX High Temperature Tensile Machine
Force Capacity 20kgf, 50kgf, 100kgf, 200kgf, 500kgf, any one option.
Temperature Room temperature to 200℃
Control Method P.I.D. automatic temperature calculation.
Measurement and Control Software The full open test software of Windows OS.
Force Measurement Accuracy ± 0.5%.
Effective Force Measurement Range 0.5 ~ 100% F.S.
Deformation displayed value Accuracy ± 0.5%.
Test Speed Range 0.5 ~ 500mm/min, Can be set.
Test stroke Maximum 450mm, including griper’s length.
Effective test space 220mm left to right, 350mm front and rear.
Unit switch Contains a variety of internationally accepted unit of measurement, users can define their own desired unit.
Stop mode Upper and lower security settings, emergency stop button, the program setting of strength and elongation, specimen damage sensing.
Special Features Can do continuous tension, sustained pressure, fatigue, bending, flexural and shear tests; users can also according to their actual test needs to define its own test methods.
Standard accessories machine seat X1, RS-232 data lines X1, power cord X1.
Dimensions (W×D×H) Tensile machine: 75×50×125cm, chamber size: 40*40*60cm or customized
Weight About 120 kg.
Motor AC servo motor.
Power 1PH, AC 220V, 50/60Hz

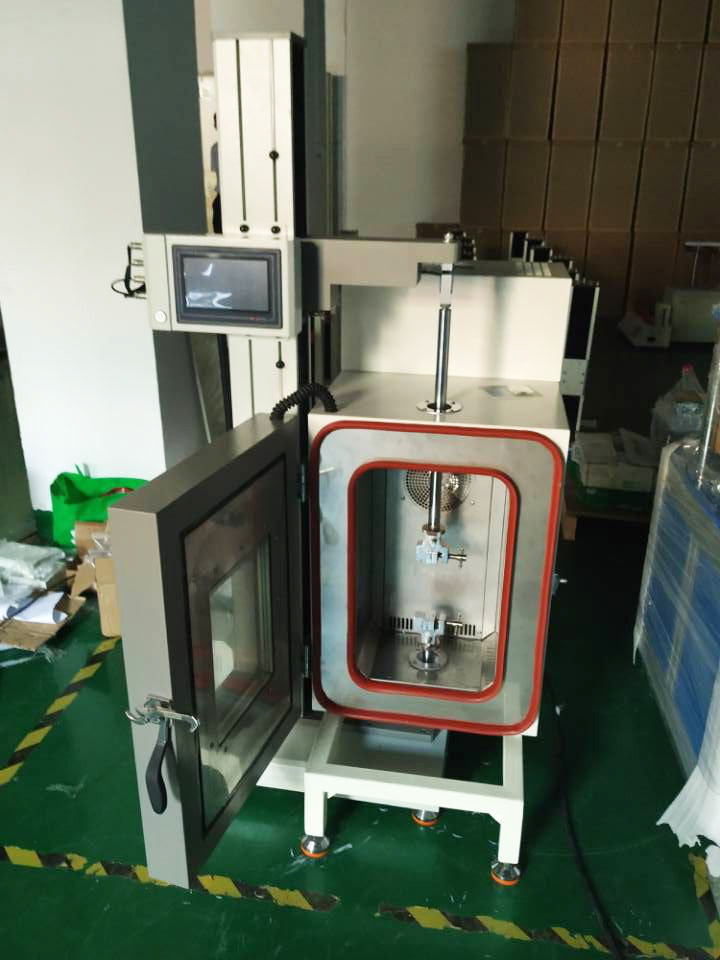

Tensile Testing Machine With Oven :

1000N High Temperature Tensile Testing Equipment With Oven / AC Servo Motor
